DIN 837 – ISO 3318
Double Ended Flat Ring Spanner
- Forged from 31CrV3 Chrome Vanadium Steel
- Flat Pattern
- Slim ring and short shank enhance working clearance when space is at a premium
- 12 point head giving 30° increments
- Box ends with wave profile to protect the nut angles
- Non Glare Matt Chrome Plated Finish
DIN 837 – ISO 3318
Double Ended Flat Ring Spanner
- Forged from 31CrV3 Chrome Vanadium Steel
- Flat Pattern
- Slim ring and short shank enhance working clearance when space is at a premium
- 12 point head giving 30° increments
- Box ends with wave profile to protect the nut angles
- Non Glare Matt Chrome Plated Finish
Product Specifications
| Article No. | Size (mm) | Length (mm) | Weight (Grams) |
|---|---|---|---|
| 4006073 | 6×7 | 93 | 10 |
| 4008093 | 8×9 | 105 | 17 |
| 4008103 | 8×10 | 105 | 18 |
| 4010113 | 10×11 | 125 | 30 |
| 4012133 | 12×13 | 140 | 40 |
| 4014173 | 13×17 | 162 | 70 |
| 4014153 | 14×15 | 152 | 55 |
| 4016173 | 16×17 | 162 | 75 |
| 4017193 | 17×19 | 171 | 100 |
| 4018193 | 18×19 | 171 | 100 |
| 4018213 | 18×21 | 195 | 145 |
| 4019223 | 19×22 | 197 | 155 |
| 4020223 | 20×22 | 197 | 140 |
| 4021233 | 21×23 | 215 | 170 |
| 4021243 | 21×24 | 215 | 185 |
| 4024273 | 24×27 | 250 | 225 |
| 4025283 | 25×28 | 265 | 290 |
| 4027323 | 27×32 | 295 | 300 |
| 4030323 | 30×32 | 295 | 370 |
Packing Options
Finish Options
- C = Matt Chrome Neutral
- CCS = Matt Chrome Talbro Cold Stamped
Sets
-

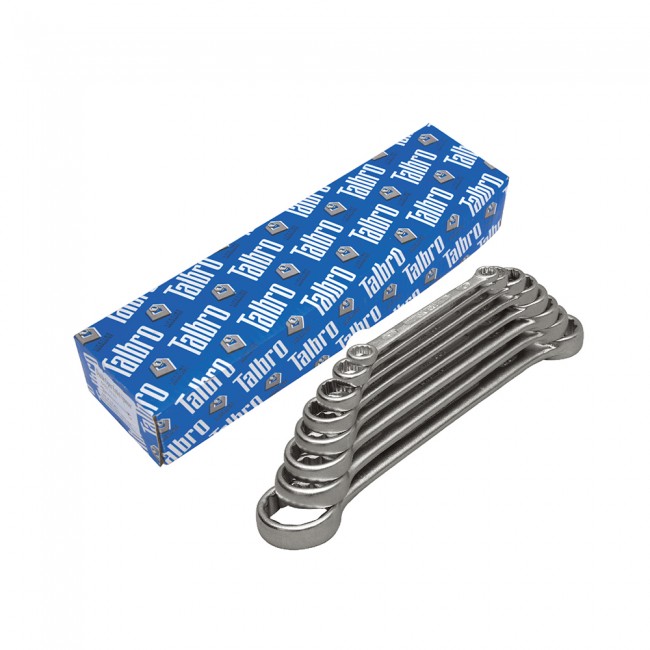

40 C – KSet in Card Board Box
Set in Card Board Box
40 C – KArticle No. Content (mm) Weight (Grams) 40C-K/8 6×7 8×9 10×11 12×13 14×15 16×17 18×19 20×22 520 40C-K/12 6×7 8×9 10×11 12×13 14×15 16×17 18×19 20×22 21×23 24×27 25×28 30×32 1630
40 C – KSet in Card Board Box
Set in Card Board Box
40 C – K
40 C – K
| Article No. | Content (mm) | Weight (Grams) |
|---|---|---|
| 40C-K/8 | 6×7 8×9 10×11 12×13 14×15 16×17 18×19 20×22 | 520 |
| 40C-K/12 | 6×7 8×9 10×11 12×13 14×15 16×17 18×19 20×22 21×23 24×27 25×28 30×32 | 1630 |
